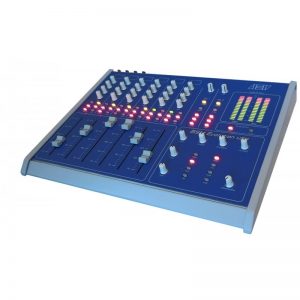

AEV Acuo 912 broadcast mixing console

All Balanced inputs and outputs – Digital setup and setting. Eight double-channel inputs Mixer – A/B
input control – 100 mm ALPS Sliders with Digital VCA control. Four balanced mono Microphone input with phantom power with XLR connectors – Eighth balanced stereo lines with RJ-45 connectors – Two Digital AES/EBU input – Digital Three-band tone control all input channels – TwoTelephone opto-coupled hybrid internally integrated with tone control – Meeting function on telephone hybrid (PGM, UTL, AUX and CUE) – Three independent Balanced Analog Stereo Outputs( PGM, UTL, and AUX) – Two independent Digital AES/EBU Outputs (PGM and UTL ) – Control Room and Studio functions with monitor mode selector – Control Room out with mute logic – Two internal USB Audio Board for extra versatility connection – Output opto-coupled ON AIR
command – Totally shielded bus – Digital TFT display 4,3” for monitoring & setup functions, Digital
stereo led meters: PGM & SEL. Dimension 636 x 360 x 44 mm ( L x D x H )
